Verus Engineering Rear Wing Kit, Includes Carbon Spoiler – Porsche 987 Cayman

Description

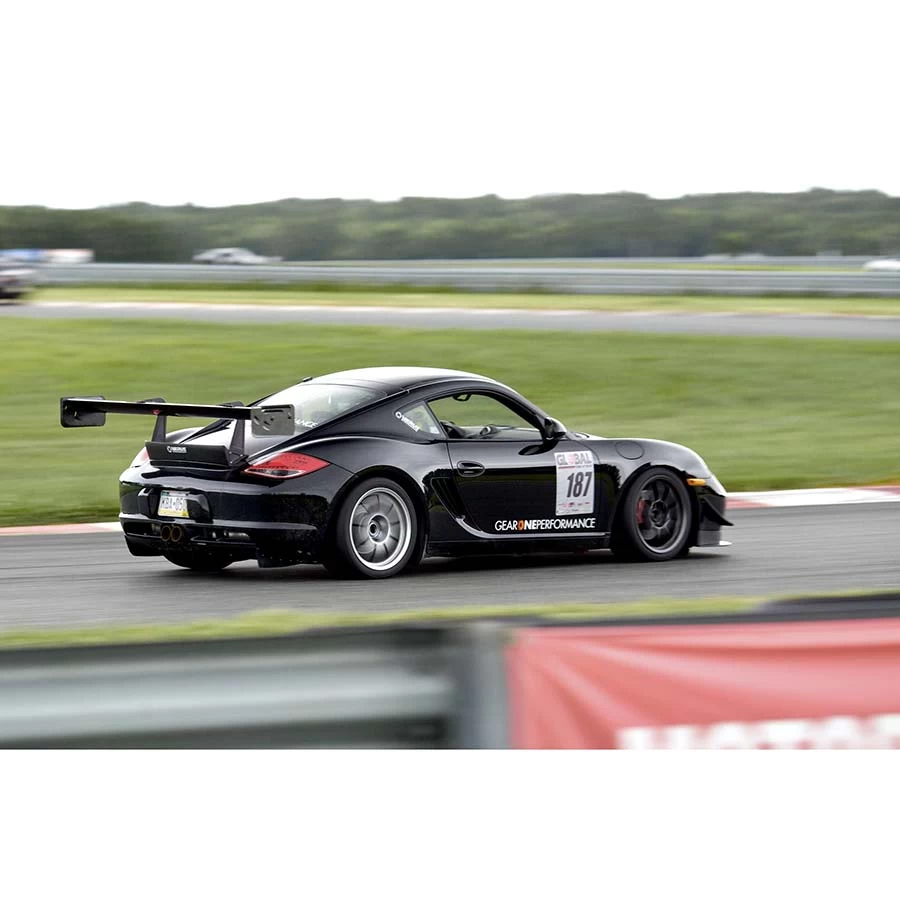

Dramatically improve rear-end grip at speed with our 300mm chord, swan neck wing with carbon spoiler for the 987 Porsche.

The wing and full aero kit were designed in CFD to greatly improve the vehicle’s performance around the track. The wing alone has the ability to dramatically reduce lap times.

Construction on the rear wing is the same of that in Motorsport; as it is built by a Motorsport wing provider in the U.S.A.

The uprights are CNC machined from 6061-T6 aluminum and were FEA analyzed to ensure strength was kept high while weight was minimized. The carbon spoiler installs onto the OE trunk with a multitude of bolts and transfers load through multiple points to the chassis.

WHAT IS INCLUDED

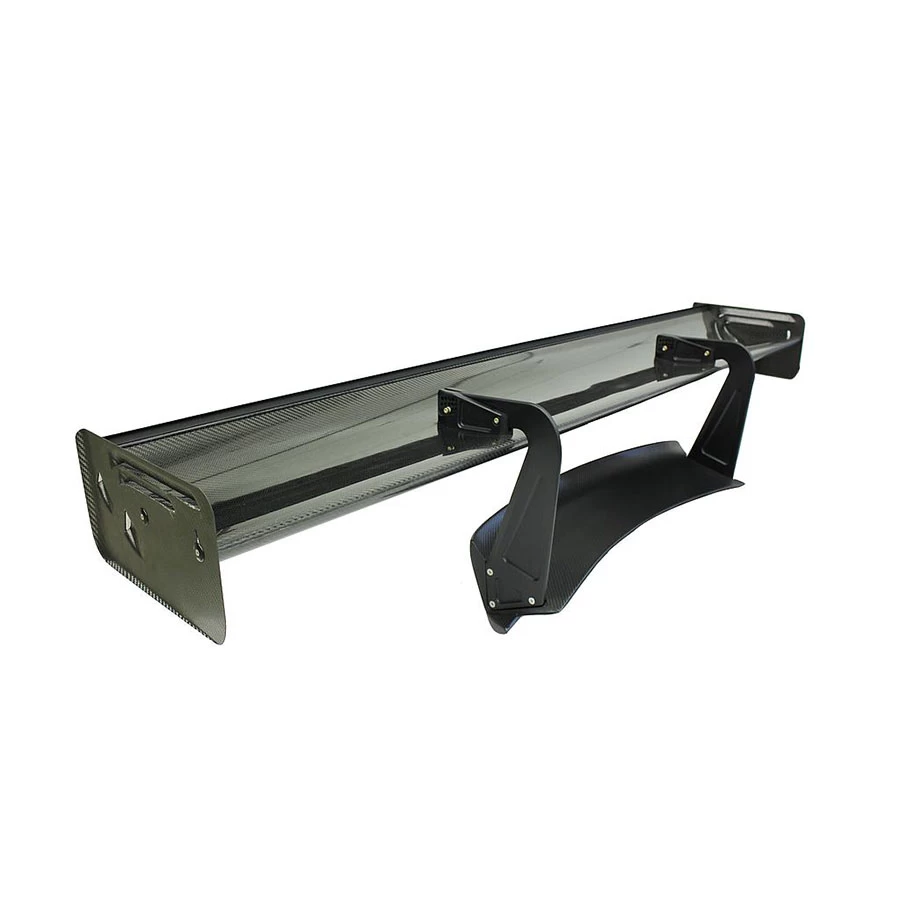

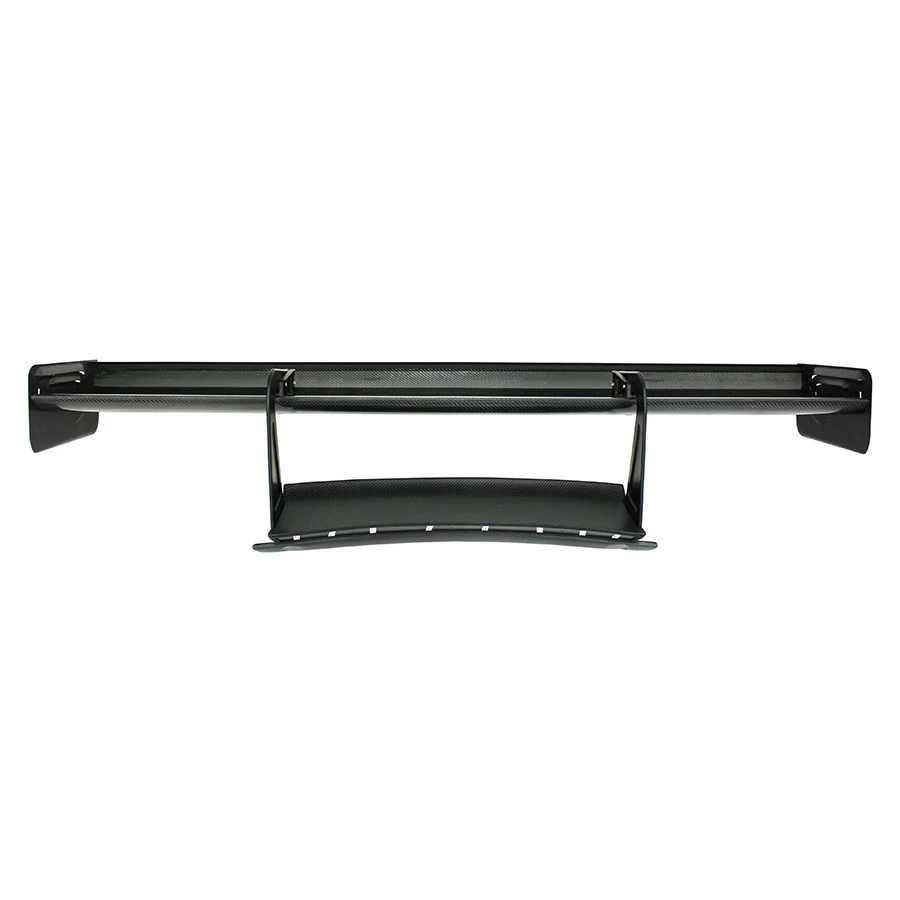

Carbon Rear Wing, 300mm Swan Neck
Carbon Vented Endplate (2)
Billet Swan Neck Mount (2)
Billet Swan Neck Upright (2)
Carbon Ducktail Spoiler
Gurney Flap
3M VHB Double-Sided Tape, Gurney Flap
Drill Template
Hardware Kit, Includes All Necessary Hardware for Install

FEATURES
CFD Optimized Airfoil
Highly Efficient (Great L/D)
15 Total Adjustment Angles (-1 to 14 degrees)
Lightweight and High Strength
Capable of Generating and Handling Over 700lbs of Downforce at 120MPH
Swan Neck Design for Improved Efficiency from the Wing Element

SPECIFICATIONS
Rear Wing
2×2 Twill, 3k, Pre-Preg Carbon Fiber
Cured in an AutoClave
Carbon Inner Rib for Strength
Carbon Endplates

Duck Tail
2×2 Twill, 3k, Pre-Preg Carbon Fiber
Cured in an AutoClave
Aluminum Mounts Bonded In
Double-Sided Tape and Foam Pre-Applied

Mounting
Machined 6061-T6 Aluminum Mounts and Uprights
Military Spec (NAS) Hardware On Wing
Stainless Hardware Throughout
