Craft Square Carbon Super GT Works Type Mirror – Universal

Description

ATTENTION!
Craft Square mirrors are special ordered from Japan due to the uniqueness of each set, and will therefore take approximately 10-12 weeks for shipping. There are NO REFUNDS on Craft Square mirrors as they are highly specialized and manufactured based on each order as they receive them. PLEASE make sure you read through all the options available for each mirror before ordering. Thank you for your cooperation!

PLEASE READ THROUGH ALL AVAILABLE OPTIONS!>

Craft Square Touring Competition Mirrors are hand crafted and famous for their perfect fitment using OE mounting points. Used in professional racing series such as Super GT(JGTC), Super Taikyu, Formula 1, and D1GP, Craft Square Mirrors meet the highest standards in the automotive industry. You will not be disappointed.

FEATURES:
– Sold in pairs (driver and passenger side)
– Lightweight Carbon Composite
– Adjustable CraftSqure duralumin racing lock system with stainless ball joint
– Aluminum cast base with protective clear coat (Impreza is Black)
– Each set includes Craft Square decals
– Wide Mirror reducing blind spot areas
– Passes Japanese Safety Standard

Craft Square Mirrors are also extremely customizable to a driver’s preferences. Therefore, PLEASE READ through all options before purchasing! Unfortunately, NO REFUNDS are given on Craft Square Mirrors due to the uniqueness of each order request.

OPTIONS:
Mirror Type: The standard mirror used is the 1000R. Blue anti-glare lenses are a common but optional upgrade for the 1000R. In addition, Craft Square has also created the 800R and 500R types, which are used for race only. The 800R is the same mirror used on Super GT GT500 Class and Super Taikyu race cars. The 500R mirror is used on Super GT GT300 Class machines. The 800R and 500R mirror housing shapes differ from the standard 1000R and come with special housing.

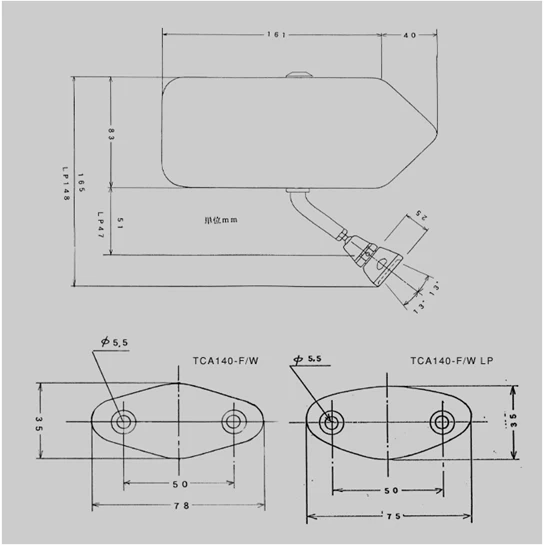

Specifications:
Surface Angle @ Attachment Position: LP 49?+-13 *Standard Model is 55 degrees +-13
Height btw Attachment Position & Mirror: LP 148mm *Standard Model is 165mm

Mirror Housing: Carbon Composite
Mirror Magnification: 800R – Chrome Mirror
Attachment Base: Universal Architecture Aluminum Cast. Duralumin High-Pressure Studs. Black Alumite Finish.
Installation: Bolt-On Fitment
Mirror Angle Adjustment: CraftSquare original racing lock system. Duralumin and Stainless Ball Joint. CraftSquare original stainless ball joint. Adjustable Duralumin Lock Cap.
Weight Per Side LP: 305g Standard: 310g
Japanese Safety Standard: Passed
